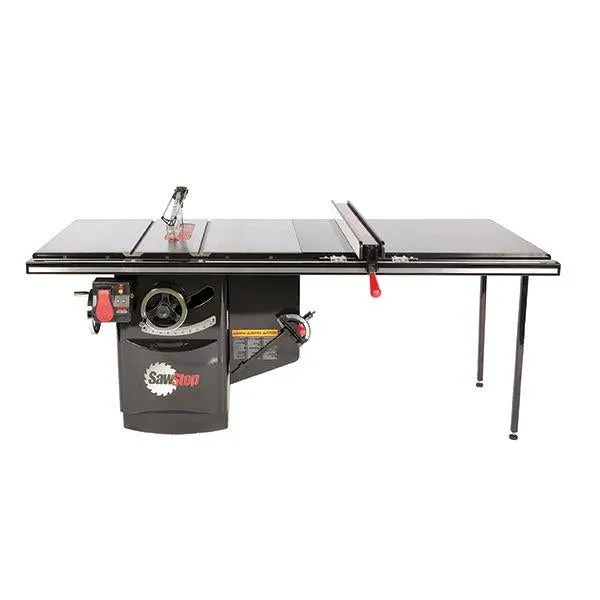

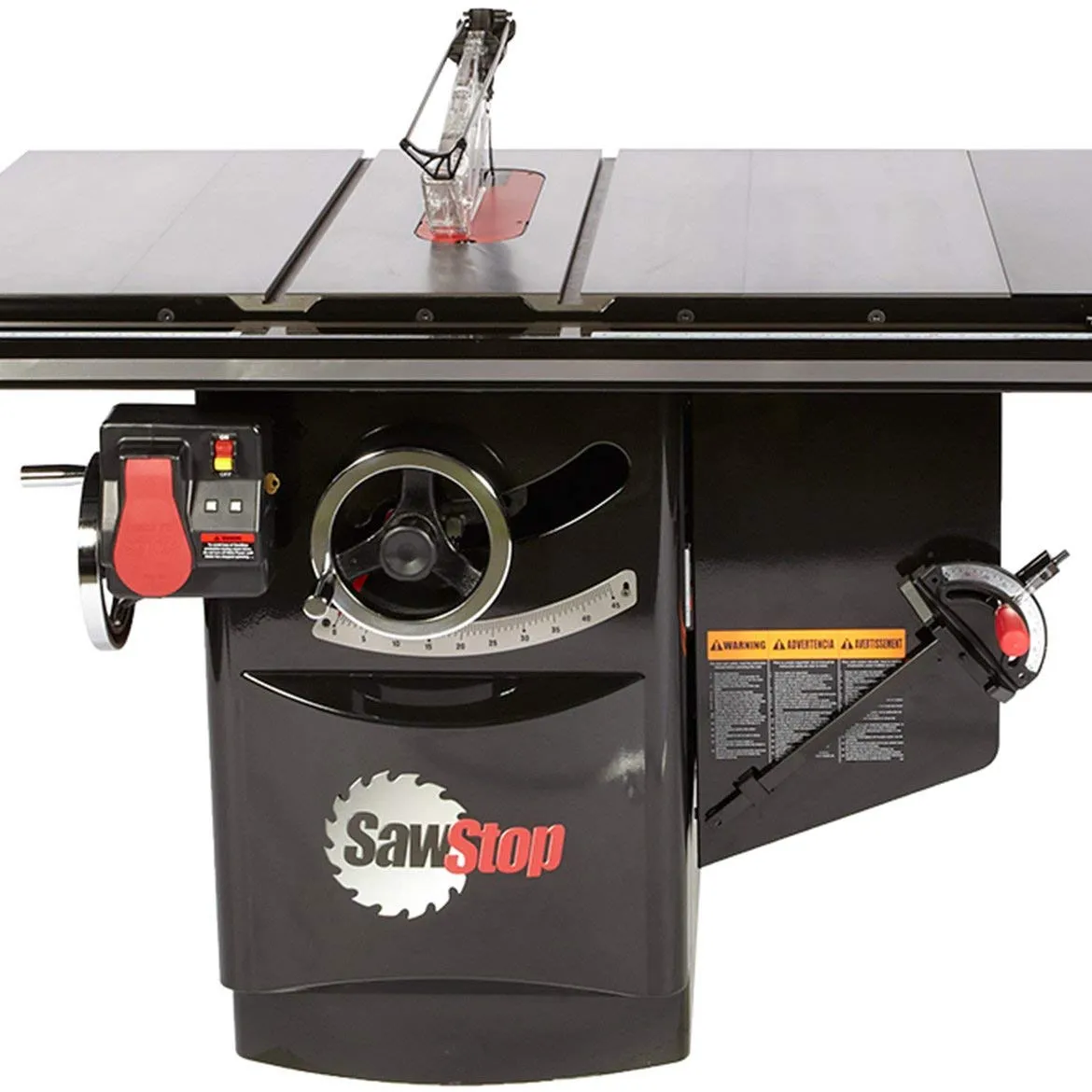

SawStop ICS73480-52 10" Industrial Cabinet Saw - 7.5HP w/ 52" Fence Package

SawStop Saws are the most advanced saws in the world. Each saw is equipped with a safety system that detects when someone accidentally contacts the spinning saw blade, and then stops the blade in milliseconds. In most cases, such an accident would result in just a nick on a SawStop saw, instead of the devastating injury which would likely occur on an ordinary saw. A fast-acting brake stops the blade when contact is detected.

Overall saw dimensions: 85-1/4" wide x 36-1/2" deep x 34" high
Cabinet footprint: 20" x 25"
Cast-iron table: 24" w x 30" d
Cast-iron table size with extension wings: 44" w x 30" d
Motor: 7.5 HP, 3-phase, 480V 60 HZ
Weight: 685 lbs.
Blade: 60-tooth, professional grade, 5/8" arbor
Blade diameter: 10"
Blade tilt: left
Blade kerf: 0.118" (3mm)
Blade plate thickness: 0.078"
Max. depth of cut, blade at 0 : 3-1/8"
Max. depth of cut, blade at 45: 2-1/4"
Max. rip, left of blade: 12-1/2"
Dado diameter: 8" (requires a separate brake cartridge and table insert)
Dado max. width: 13/16"
Arbor diameter at blade: 5/8"
Table in front of blade (max. elevation): 11"
Table behind blade (max. elevation): 9-3/4"
Table flatness measured diagonally: 0.010" maximum gap
Miter slots: T-shaped, 3/4" at top, 1" at bottom, 3/8" deep
Dust-collection port diameter: 4"
Riving knife/splitter thickness: 0.090" (2.3mm)
Insert: zero clearance, phenolic core, melamine surfaces
Belts: 2 V-ribbed belts
